ART Wooden Perforated Acoustic Panel With White Melamine Finish For Auditorium
ART Wooden Perforated Acoustic Panel With White Melamine Finish For Auditorium : The Perfect Fusion of Acoustics and Aesthetics
Our Perforated Wooden Acoustic Panels are at the forefront of acoustic material innovation, revolutionizing industry standards by breaking free from traditional constraints. With a wide range of hole diameters, shapes, and arrangements, coupled with an extensive selection of finishes and colors, these panels not only meet the stringent requirements for acoustic performance in various spaces but also offer vast creative potential for architectural decoration.Through thousands of regularly arranged holes, these panels can target and absorb mid - low frequency sound waves, effectively reducing spatial reverberation and significantly enhancing the purity and clarity of sound. This provides professional-grade acoustic solutions for different types of spaces.
In terms of base materials, we offer a diverse range of options, including common base materials, environmentally friendly base materials, flame-retardant base materials, glass-magnesium base materials, ceramic-aluminum base materials, and composite base materials.This allows for flexible adaptation to meet the functional, safety, and cost requirements of different projects.
(alternate lengths and widths are available)
Wall System Installation
- Base Treatment：Level the wall with a 400×600mm wooden keel frame to ensure that the verticality error is ≤3mm.
- Acoustic Layer Laying：Fill with 50mm thick glass wool (bulk density 60kg/m³) to enhance the sound absorption effect.
- Panel Fixing：Fix the acoustic panel to the keel with anti-rust nails and embed special wooden strips to seal the splicing joints.
- Edge Treatment：Leave a 3 - 5mm expansion joint between the panels and complete the edge treatment with special decorative strips.
Ceiling System Installation
- Keel Structure：Adopt a three-dimensional fixing system of T-type main keels (spacing 1200mm) + secondary keels (spacing 600mm) + edge keels.
- Panel Installation：Hang the acoustic panel on the secondary keels through special clips to achieve a detachable installation.
- Acoustic Optimization：Install acoustic non-woven fabric inside the ceiling to further enhance the low-frequency noise reduction performance.
- Deep Industry Accumulation and Continuous Innovation：With 20 years of experience in veneer research, development, and manufacturing, we have deeply integrated traditional craftsmanship with modern acoustic technology, achieving a harmonious unity of functionality and aesthetics.

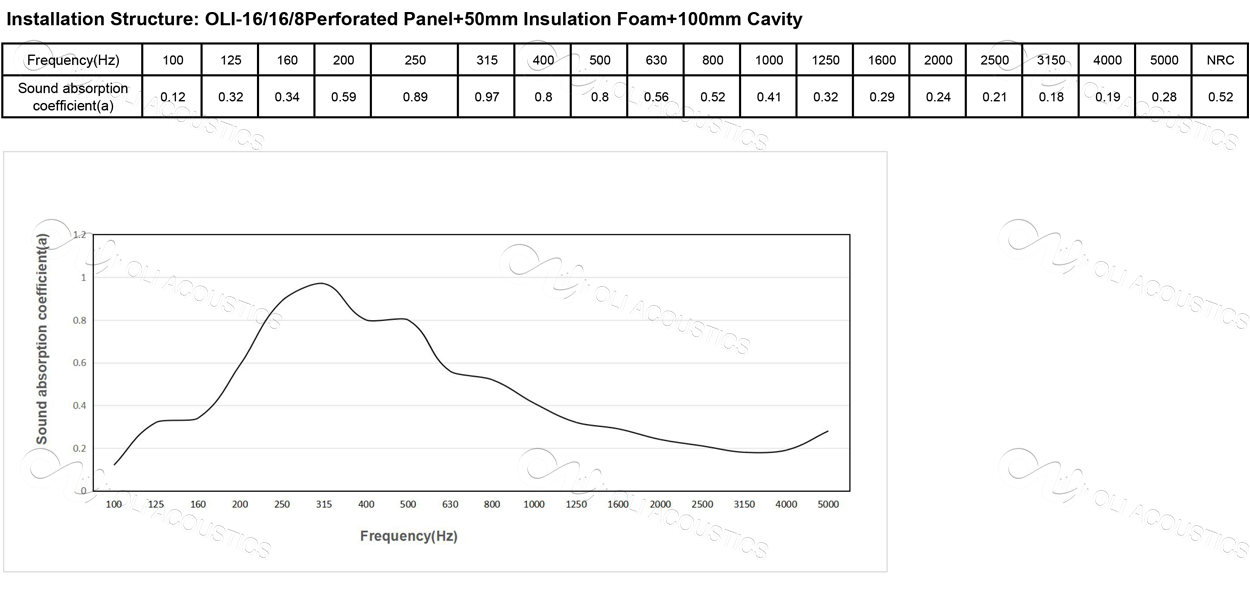

- Superior Acoustic Performance：Designed based on the optimized Helmholtz resonance principle, the perforated acoustic panel with a 3 - 10mm hole pitch form a high acoustic resistance absorption structure. In the mid - low frequency range of 500 - 2000Hz, the sound absorption coefficient can be increased by up to 85%, effectively eliminating echoes and noise interference.
- Comprehensive Customization Services：We support full-dimensional customization of hole diameters, shapes, finish materials, colors, and base materials. We can provide exclusive acoustic and decorative solutions for different scenarios such as theaters, conference rooms, and commercial spaces.
- Professional Installation Adaptability：Our mature tongue-and-groove splicing process and standardized installation system ensure seamless integration with various wall and ceiling systems. The installation efficiency is increased by 40%, and the surface flatness error is ≤1.5mm.
- Authoritative Quality Assurance：The panels have passed the fire protection, environmental protection, and acoustic performance tests of the National Building Materials Testing Center. Third-party test reports are provided, and we offer a ten-year quality guarantee.
- Cultural and Art Venues：Theaters, concert halls, recording studios, art galleries.
- Business Office Spaces：High-end office buildings, conference rooms, lecture halls, multi-functional halls.
- Public Buildings：Gymnasiums, exhibition halls, libraries, educational institutions.
- Home Entertainment Spaces：Private cinemas, music rooms, high-end residential audio-visual spaces.
Through scientific acoustic design and personalized aesthetic customization, our Micro-Perforated Wooden Acoustic Panels create high-quality environments that combine functionality and artistry for various spaces, redefining the acoustic standards of modern architecture.
